Confusion about expansion rule picture

VEX Robotics Competition Discussion VRC
#1


Is this picture saying the bot is illegal or legal?

#2

The bot is illegal as there is a point-to-point distance that is greater than 36”. It’s definitely not the clearest diagram about how the expansion limit works lol.

10 Likes
#3

image739×227 79.9 KB

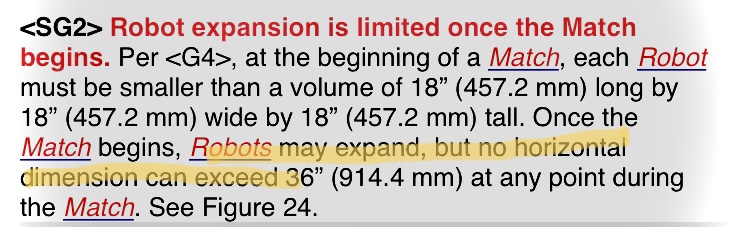

Here is where it says that In The rules

3 Likes
#4

I think the illustration causes more confusion than it should by having two check marks - there should just be a big X and no other marking than showing more than 36" horizontal measurement.

There should also be a similar diagram showing a robot that falls over and exceeds 36" measurement during a match, and therefore an infraction.

6 Likes
