LCD display datasheets

VEX V5 General Discussion General Forum
1

does anyone know where I can get a datasheet for this lcd:
SVM1602BSGB-1

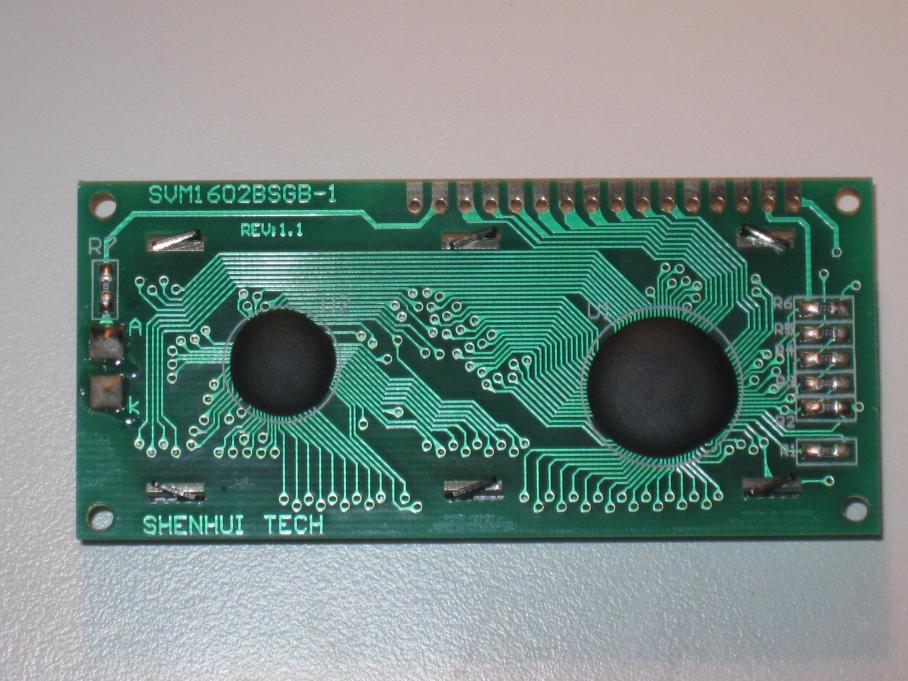

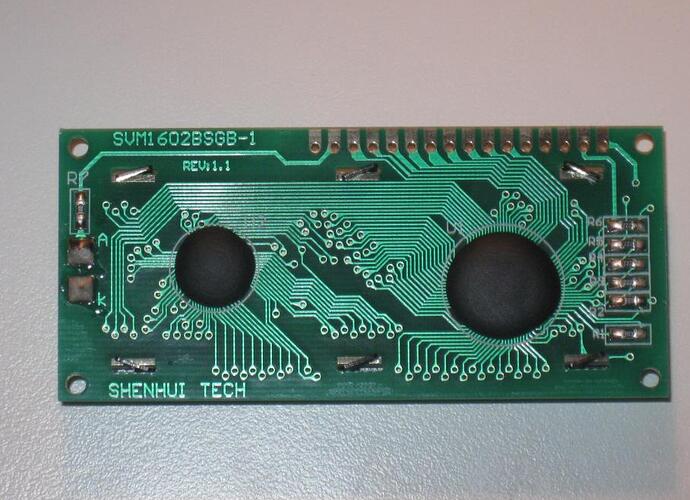

IMG_0498.jpg1166×875 89.9 KB

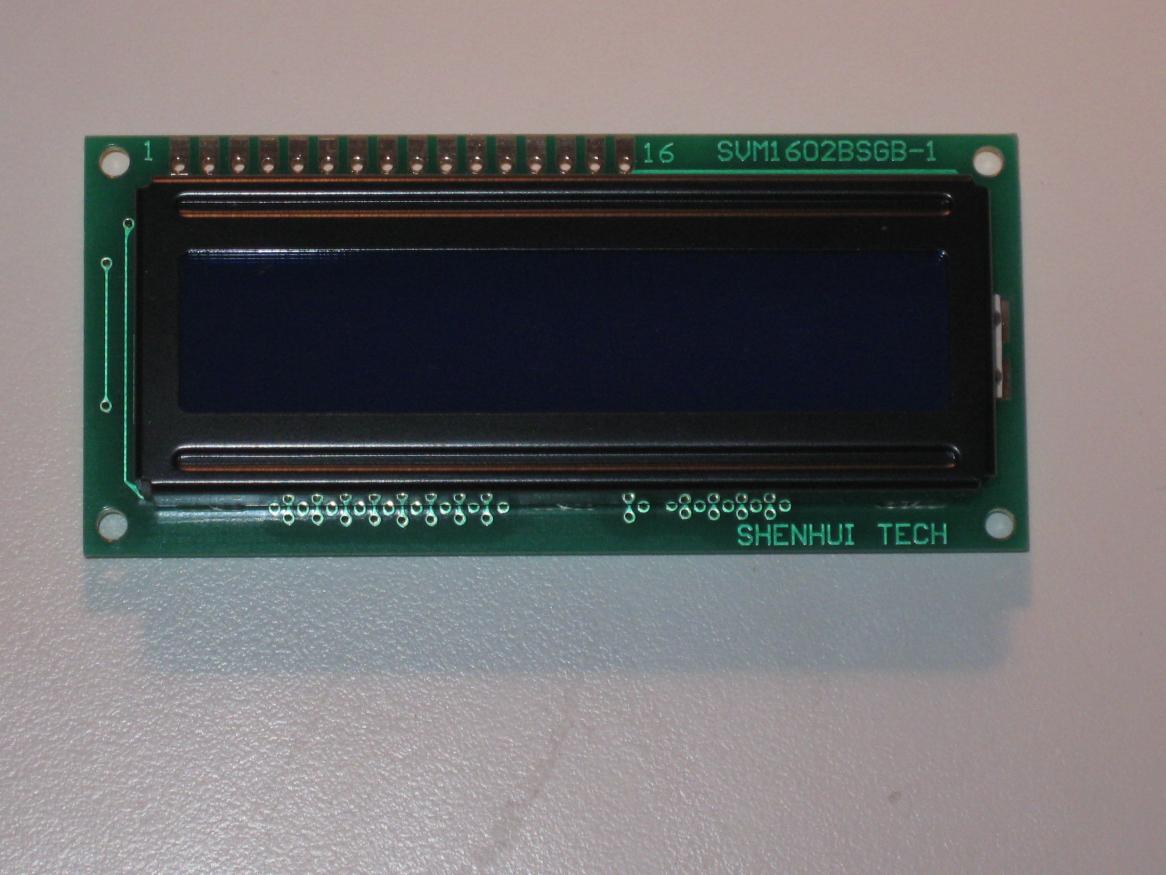

IMG_0500.jpg908×681 93.4 KB

2

Here is a basic spec sheet: <http://www.sbtron.co.kr/korean/product/pdfs/SVM1602BSGB-1.pdf>

As for how to drive it, it’ll probably work like most other parallel-interface 16x2 LCD modules. Check out <http://www.sparkfun.com/datasheets/LCD/GDM1602K-Extended.pdf>, for instance.

Cheers,

  • Dean
3

thanks Dean, that Is what I needed

4

Did you happen to see the LCD Display connected to the Vex Controller currently displayed on the Vex Gallery?
