Masses of VEX Hardware & Parts

VEX V5 General Discussion General Forum
1

As some people have been asking me about the weights of various hardware pieces, I decided I would weigh and list all (or close to all) of the hardware items used in the VEX EDR system. If there’s interest in this, I’d be happy to expand the list.

To record the masses, I used a ±0.01g scale and placed 10 of each item that was weighed at once.

Here is a Google Sheets link, I will be updating this linked sheet if changes are made, and you can make a copy to make any edits or calculations you need: Masses of VEX Hardware and Parts_PUBLIC - Google Sheets

Or you click for a link to a PDF file.

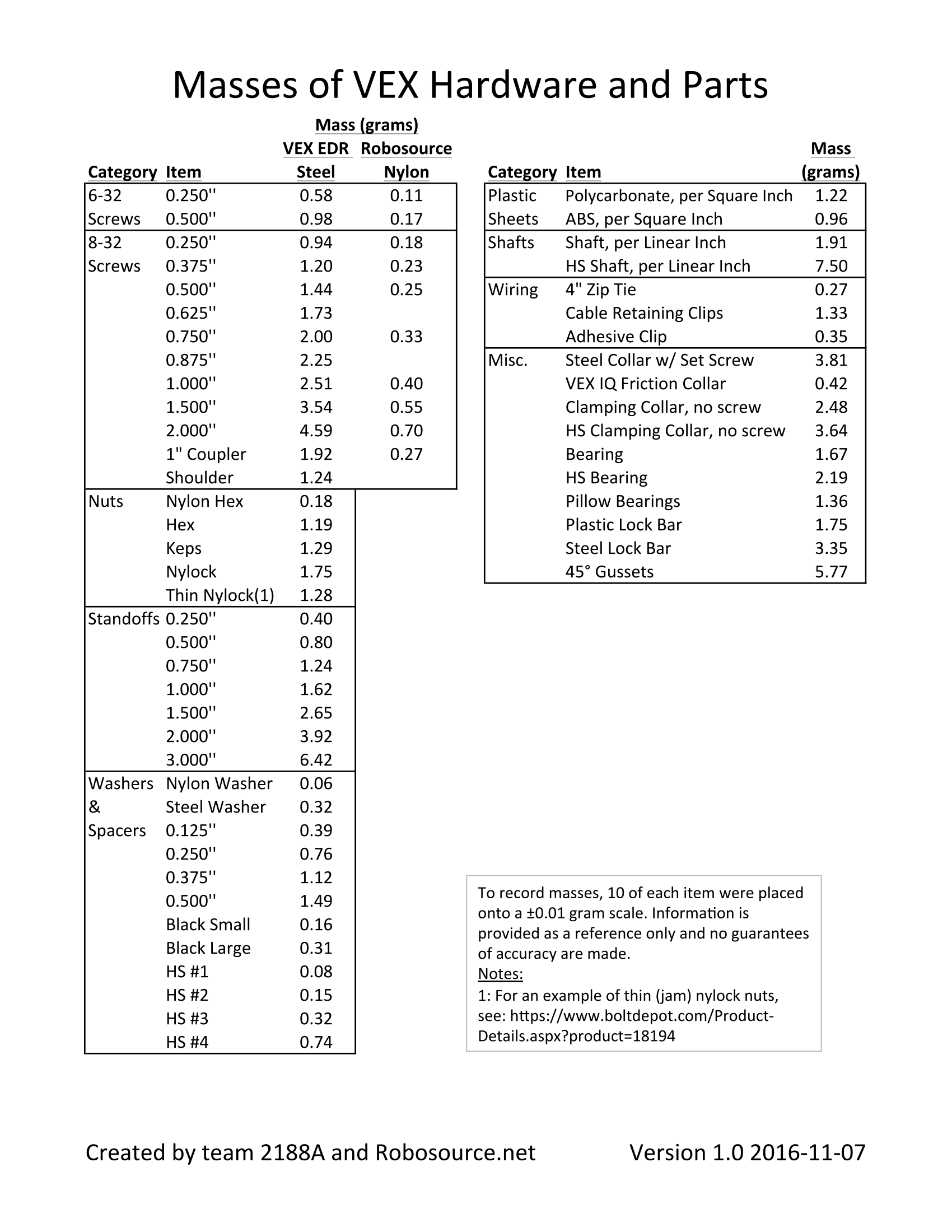

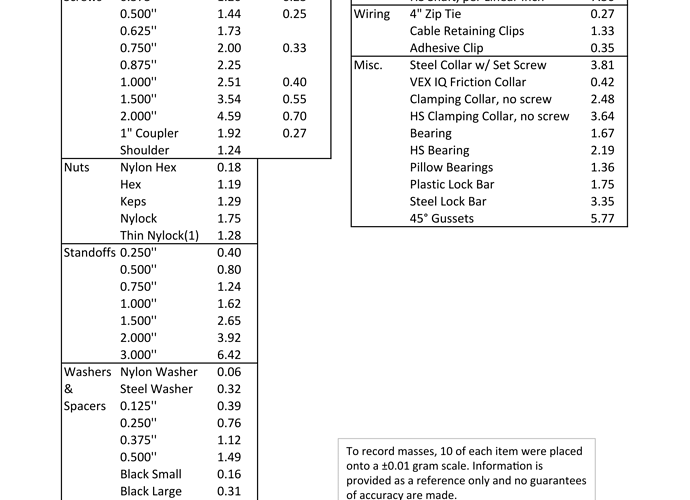

Masses of VEX Parts_1.0-1.png
Masses of VEX Parts_1.0-1.png1700×2200 142 KB

If you have any questions, weighing requests, corrections, etc please let me know!

2

Thank you for this! This will be pretty usefull. Now you need to make it into an app where you have a list and you can just change quantities :wink:

3

Hey, this is great. Thanks!

4

This is helpful. Does anyone know where I can find the weight of other Vex parts? I know that a lot of the structure has the weight listed online in the descriptions, but wheels, on the other hand, do not.

5

Awesome, thanks!

6

Wheels have their weight listed, you have to click on the “Weights” tab. Here they are for reference.

Omni-Directional Wheels
2.75" Double-Roller Omni-Directional Wheels: 0.154 lbs (70 grams)
3.25" Omni-Directional Wheels: 0.132 lbs (60 grams)
4" Omni-Directional Wheels: 0.232 lbs (105 grams)

Traction Wheels
2.75" Wheels: 0.110 lbs (50 grams)
3.25" Traction Wheels: 0.110 lbs (50 grams)
4" Wheels: 0.198 lbs (90 grams)
5" Wheels: 0.352 lbs (160 grams)

Traction Tires
4" High Traction Tires: 0.077 lbs (35 grams)

Mecanum Wheels
4" Mecanum Wheels: 0.41 lbs (186 grams)

Wheel Legs
6" Wheel Leg: 0.074 lbs (34 grams)
