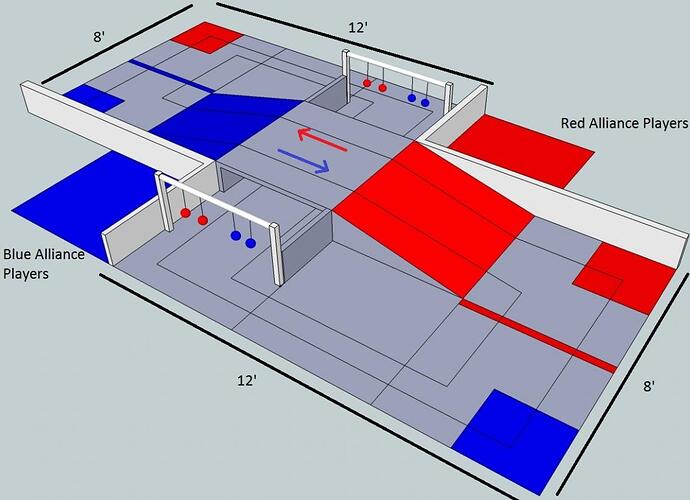

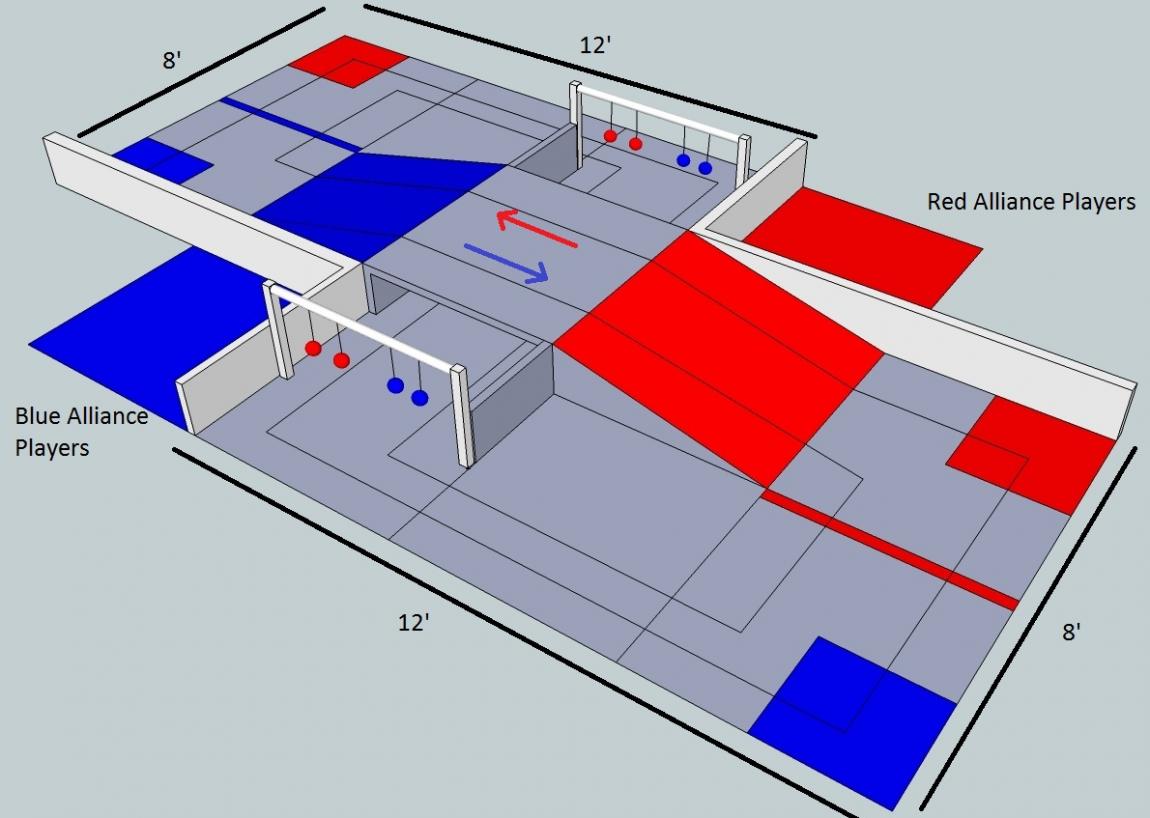

Osbourn Park High School will be hosting the first annual RoboRally. This off season event will feature the new game “Over Under.” Follow the link to find the game manual. This game will be a fast and fun racing game, with a couple of objectives beyond making laps. The game layout is attached
• If the robot stops responding while on an opposing alliance ramp during a match, will they be penalized if opposing alliance attempts to lift the ramp
o Yes, they are on the opposing alliance during a lift attempt
• If the robot stops responding during a lifting attempt, will it still be a penalty for opposing alliance to be on the ramp
o Yes, they are on the opposing alliance during a lift attempt
• Can a robot be on the ramp while attempting to lift the ramp
o Yes as long as they are attempting to lift from the 4”x2” opening
• Can a robot drive under the ramp as a lifting attempt
o Assuming they drive under the 4”x2” opening, and not through the open side, then yes
Overpass
• If the robot stops responding while on the Overpass, will the opposing alliance receive a penalty for pushing them off
o Yes, pushing opposing alliance off the Overpass is a penalty
• Is pushing an opposing alliance robot off the Overpass and onto a ramp a penalty
o No, pushing off the Overpass means the robot will fall to the ground
I can recreate the field diagram of this very creative off-season game in full 3D of the quality you will see in the official Vex animations. I’ve created 3D scenes for use as still web and print logos, T-shirts, banners, etc. for other Vex teams. My rates are actually quite reasonable.
They are the 2 blue and 2 red squares inside the field. One red and one blue start on each side of the field. Those squares are representative of a red/blue foam tile.
I hope to see your team there Jon, the twisted botz always impresses
James - Do you want rules Q&A and any suggested updates to be discussed in this thread, or through some other medium (so that only final info get posted in this thread)? - Blake
You can post any questions you have here, and I will answer them here as well. I posted an update above, and also will have photos of the field elements up soon.
I am worried that Line Following robots will have unnecessary trouble tracking the white lines in the corners of the field if red and blue tiles are actually used there.
Will the real field use those colored tiles in its corners?
Will the real field’s sides be open as is shown in the illustrations of the field, or are the fields walls removed from the illustrations just so that we can see the playing surface better?
Blake
PS: I have field perimeter panels we can use if you are running short on panels.
I am worried that line Tracking Robots will have find turning the 90 degreee corners of the currently layout very hard to do at reasonablely high speeds.
I suggest changing those corners so that they use a couple of 45 degree corners, or three 30 degree corners, instead of one 90 degree corner.
Rules tell us that the ramps are made of 1/4 plywood; but with that said, I’m not 100% certain whether or not that 1/4" plywood will be covered by foam tiles, or will be painted, or will be raw (ply)wood, or will have grip tape strips on it , or …
Please publish an illustration (a straight-down top view would probably work well) that shows the distances between the field features and the whitelines, as well as the distances between the lines themselves.
If this can easily described in words instead of a drawing, then a drawing isn’t required.
The colored arrows shown on top of the tunnel could mean that each alliance has one whiteline figure 8 assigned for their use and that the other alliance should stay off of that line. Is there any sort of allocation of the lines to the alliances?
The colored arrows shown on top of the tunnel could mean that each alliance has to drive on their assigned side of the “road” when driving around the track. Is this the case or may any robot drive in any direction or location with impunity so long as they don’t trigger the penalty associated with their lap line?
During the autonomous period (or whenever a robot initially moves) do the robots receive 2 points the first time they cross their lap line, even though they have not completed a true lap around the track?
To earn points for making a lap, does the robot have to fully cross over the lap line (go past the colored bar and be fully over the grey tiles beyond the lap line), or will a robot partially across the line get the points?
If a robot partially across its lap line will reveive points, will a robot that has crossed any part of the lap line get points for making a lap, or must some part of the robot be fully across the line?
