Hello Everyone,

Before starting my team’s High Stakes season I thought I would release our Over Under states bot.

Robot Pictures

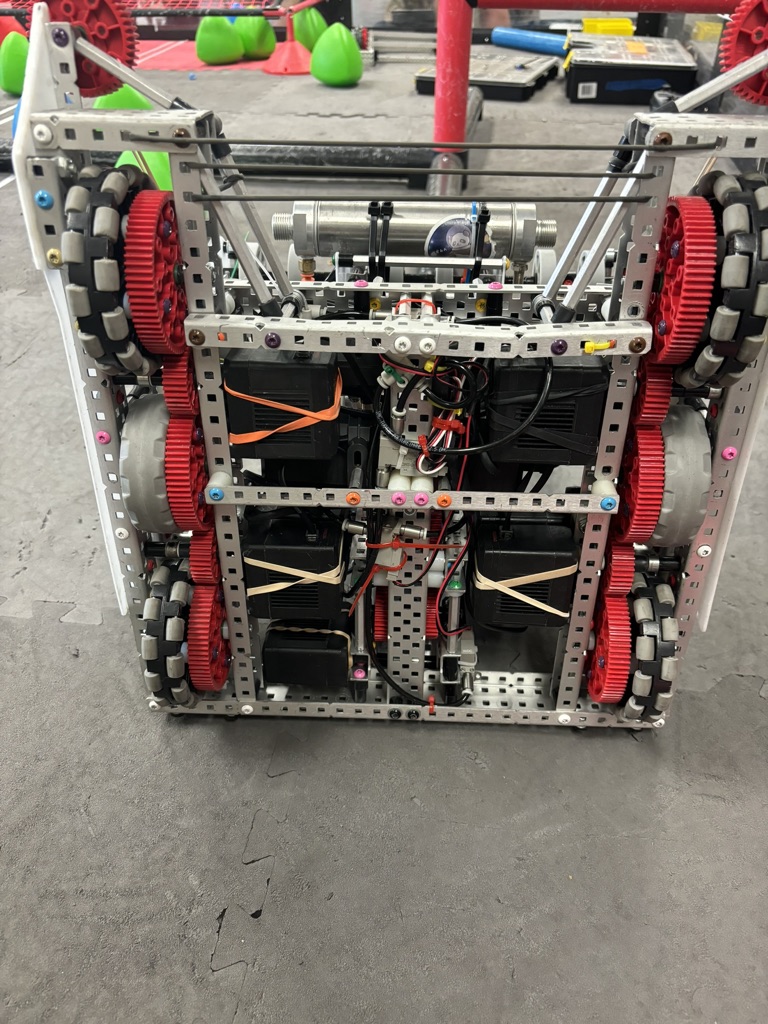

736BF2C6-BFD2-421C-A39D-3FAC3E7C3E0D_1_105_c
736BF2C6-BFD2-421C-A39D-3FAC3E7C3E0D_1_105_c768×1024 263 KB

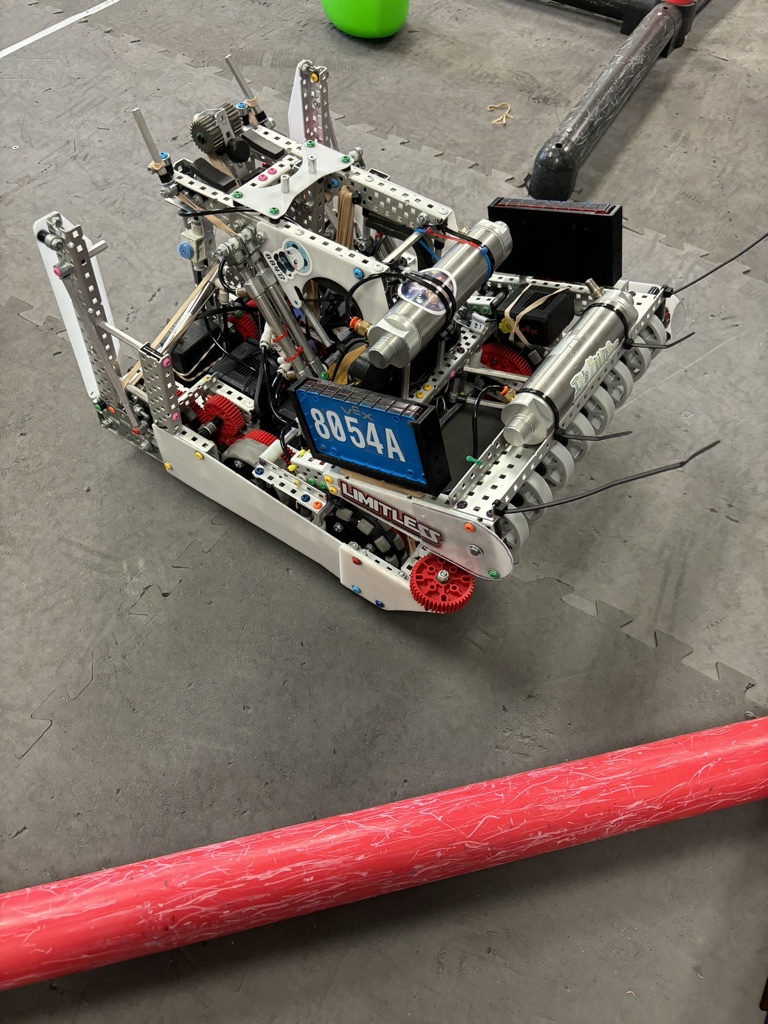

DF47A4F5-289C-45F6-8B57-EF13C64BE787_1_105_c
DF47A4F5-289C-45F6-8B57-EF13C64BE787_1_105_c1024×768 273 KB

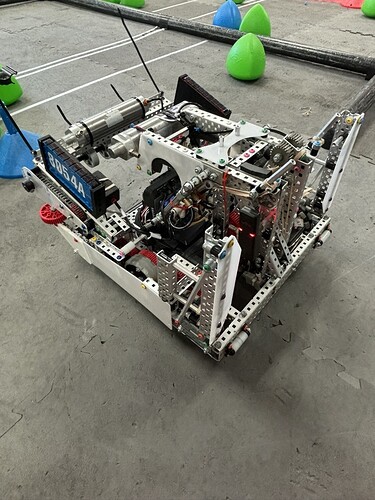

25F864EB-675C-4EF3-A96F-E0D999FC1EC3_1_105_c
25F864EB-675C-4EF3-A96F-E0D999FC1EC3_1_105_c768×1024 275 KB

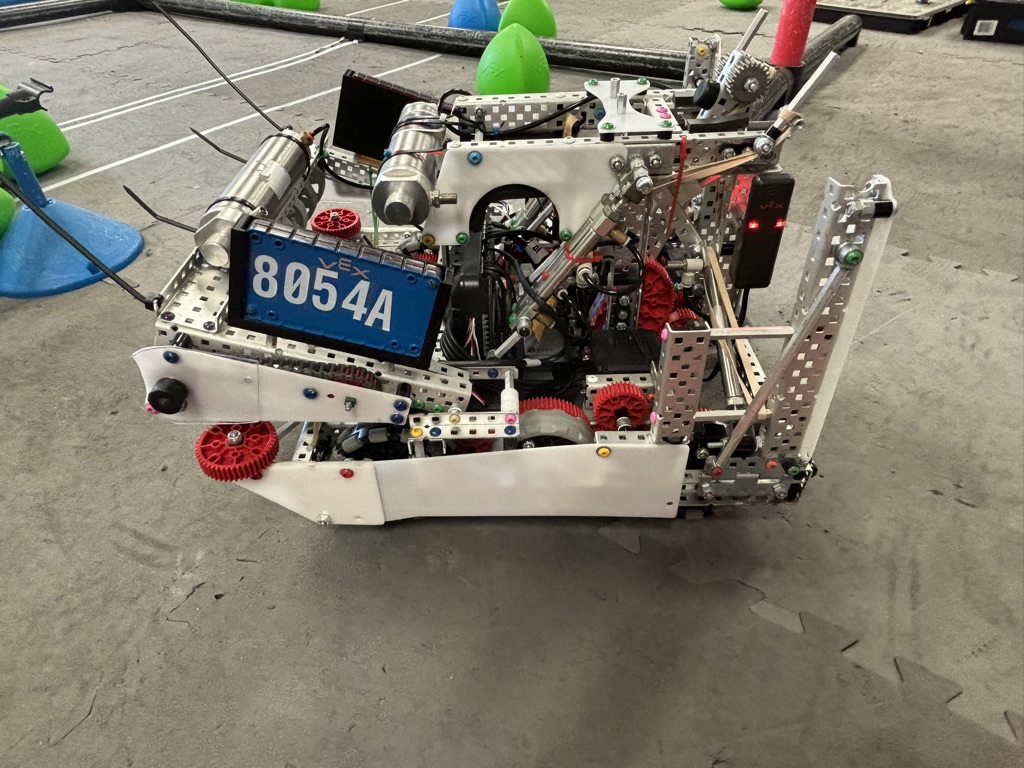

2C093967-C299-4B24-94B2-CA5BF74666D5_1_105_c
2C093967-C299-4B24-94B2-CA5BF74666D5_1_105_c768×1024 290 KB

5AD3CC28-A085-4DB1-9FEB-56264EBB88A0_1_105_c
5AD3CC28-A085-4DB1-9FEB-56264EBB88A0_1_105_c1024×768 152 KB

CAD

Onshape link: Onshape
STEP File: 8054A_OverUnderStatesBot.step - Google Drive

Notebook

8054A Over Under Engineering Design Notebook.pdf - Google Drive

Huge thank you to 515R for releasing their Spin Up notebook, our format was very much inspired from theirs. If you haven’t checked it out yet, here’s their forum post: 515R Spin Up Notebook

Feedback, questions, criticism, are all very much appreciated.
Thank you for reading, good luck in High Stakes!
