IR Linetracking sensor schematics

VEX V5 Technical Support UNOFFICIAL Tech Support
1

Im wondering if anyone knows how the board works for the IR sensor. Im interesting in trying to create a similar circuit for the replacement EE-SF5 sensor.

2 Likes
2

IMG_8697
IMG_86973024×4032 2.22 MB

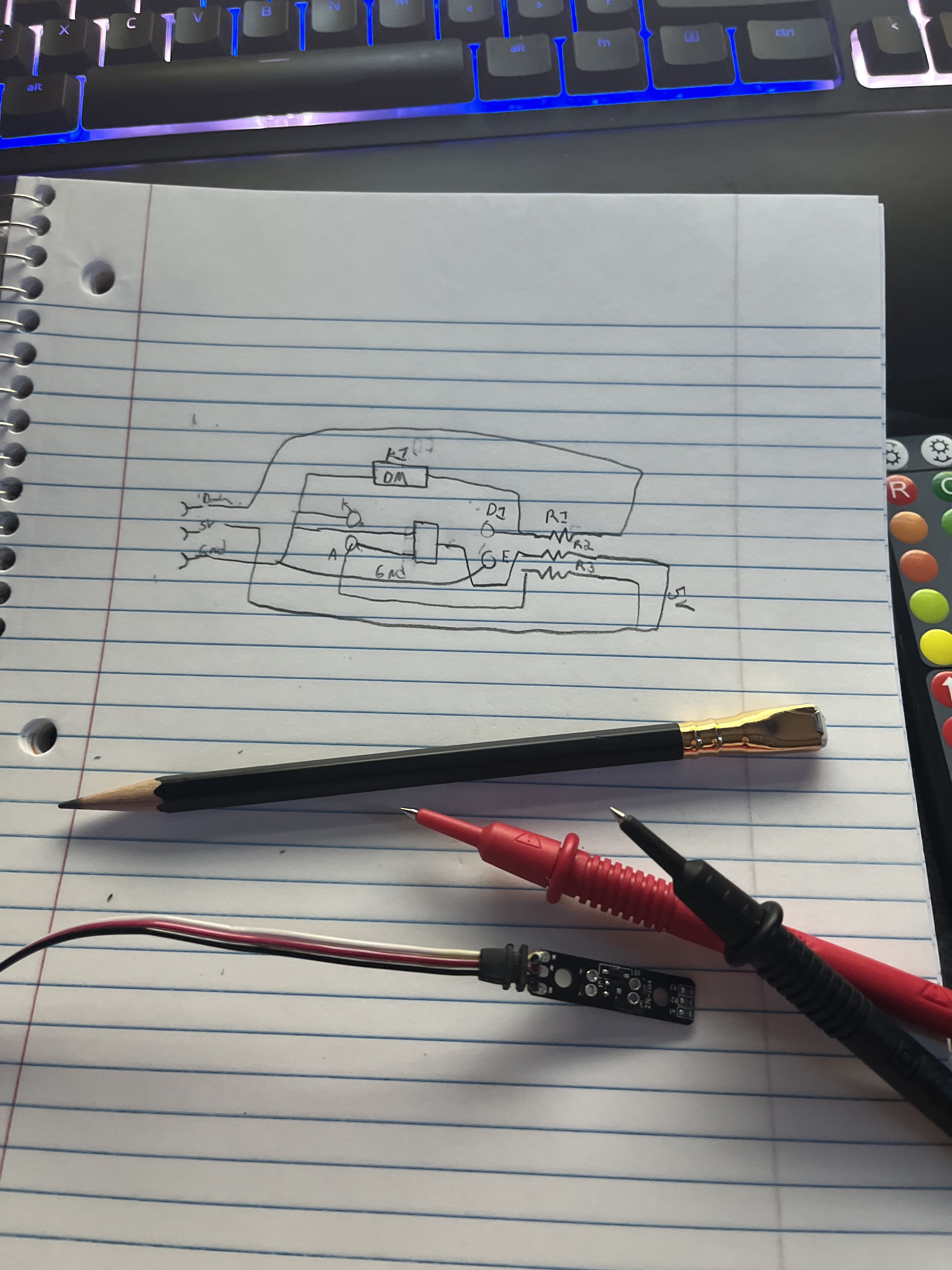

This was the best I could come up with by using my multimeter to path continuity.

1 Like
